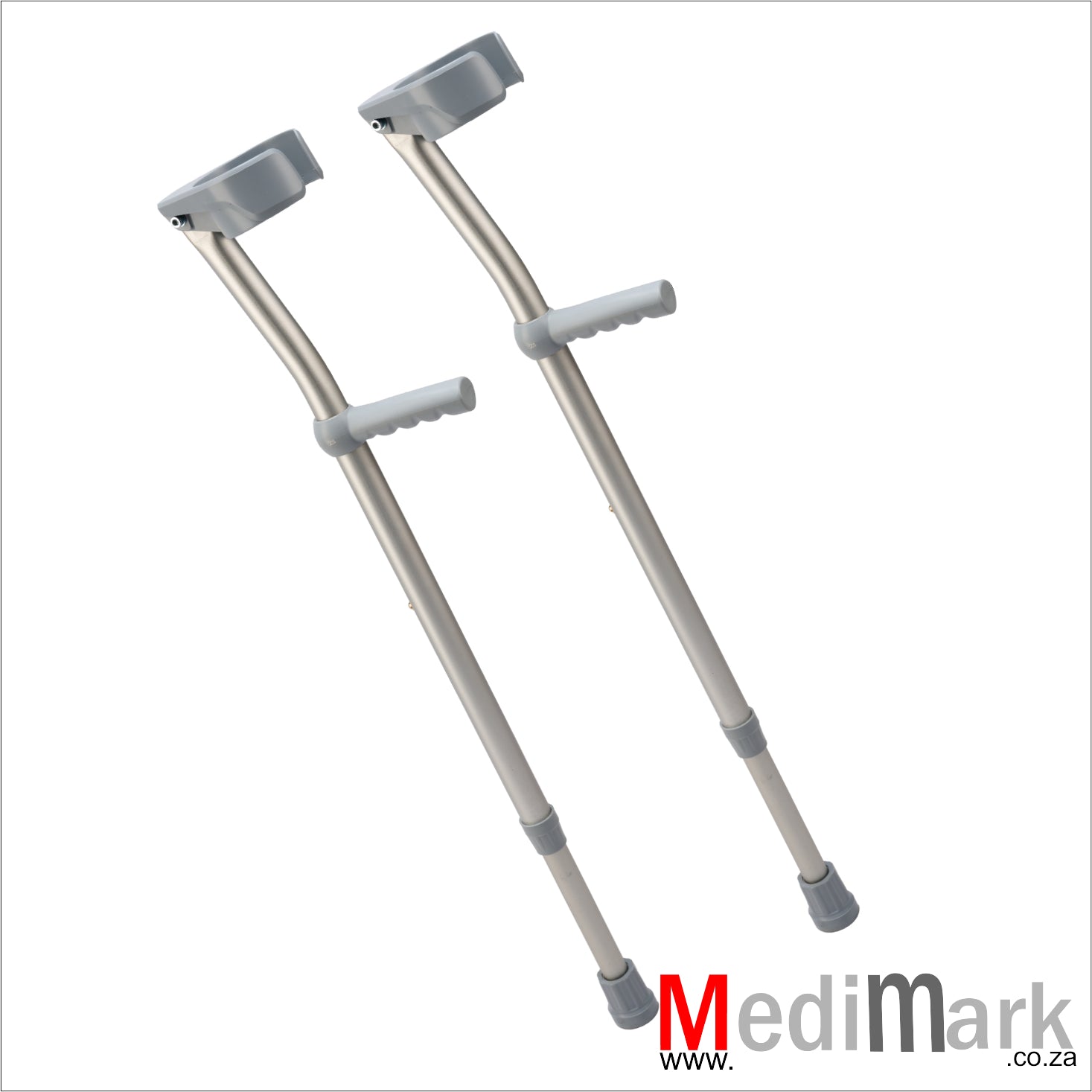

Elbow crutch comfortable for medium to long term use
Anodised matt 15 microns (µ)
Available in natural and various matt colours Grey
“Backbone” of aluminium tube; injection moulded
cuff/handle and polyethylene sundry parts
Adjustable to 10 different lengths (25mm apart)
Single; or double by arrangement
Open cuff
Description:
Type:
Tube finish:
Colours:
Plastics:
Structure:
Leg adjustment:
Punch options:
Key
1. Cuff Support Line
2. Cuff
3. Foot
4. Leg Section Axis
5. Handle
6. Handle Support Line
7. Front Handle Reference Point
8. Rear Handle Reference Point
a. Arm Section Length
h. Handle Length
l. Leg Section Length
a. Support Angle
β. Grip Angle
Support Angle (a) 16°
Grip Angle (β) 103°
Arm Section Length (a) 190mm
Mass 385g
Max. Weight of User 80kg
Leg Section Length (l) 510 - 730mm
Length 560mm
Outside Diameter 21.6mm
Mass 125g
Height Adjustment X 10 holes
Plastics
General Information
Fittings
Cuff
Fitted with standard grip
Fitted inside with anti-perforation ring
Replaceable
Design for maximum adherence
Handle
Foot
Foot Length 440mm
Outside Diameter 21.6mm
Mass 125g
Height Adjustment Fitted with plated spring clip
Foot
Plastics
Made of polypropylene
Made of polypropylene
Fitted with plastic slide at lower end for
noise and vibration reduction
Fitted with foot plug at lower end
Fitted with plug at upper end for noise
and vibration reduction
Lower Tube (Aluminium 6063-T6)
Classification: ISO 9999
Code: 120306
Conformity: In compliance with
ISO 11334-1 (Elbow Crutch)
Different to Adult and Paediatric Versions
