FEATURES AND SPECIFICATIONS OF THE HOIST
· ELECTRIC MOTOR FOR LIFTING WITH HAND CONTROL
· INTUITIVE, EASY TO USE, EXCELLENT MOBILITY
· FEATURES CASTORS ON THE LOWER SECTION. THE REAR ONES INCLUDE BRAKES THAT BLOCK THE HOIST’S MOVEMENT WHEN REQUIRED.
· LEGS OPENING THROUGH A PEDAL
· ACOUSTIC WARNS WHEN THE BATTERY’S LOW
· EMERGENCY BUTTON
· STEEL FRAME, OFFERING STRENGTH AND OUTSTANDING DURABILITY
· MAXIMUM LOAD CAPACITY: 150 KG

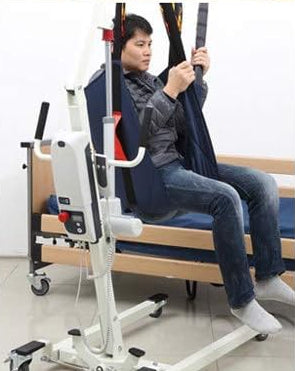

SPECIFICATIONS PATIENT LIFT ELECTRIC HOIST
· FRAME STEEL, POWDER COATING
· CHASSIS LENGTH 1082MM
· CHASSIS WIDTH 580MM – 1080MM
· LIFTING HEIGHT 870MM – 1845MM
· HANDLE HEIGHT 928MM
· CASTOR HEIGHT 95MM
· MOTOR DC 24V 8000N
· BATTERY DC24V 5AH, RECHARGEABLE BATTERY
· APPROX. 60 LIFTS PER FULL CHARGE
· CHARGER 24V-1A
· CHARGING TIME 6 HOURS PER TIME
· FRONT CASTOR 3″ SOLID TIRE, PLASTIC WHEEL OPTIONAL
· REAR CASTOR 4″ SOLID TIRE WITH LOCKING, PLASTIC WHEEL OPTIONAL
· MAX USER WEIGHT 150KGS
